| Product Series: | XT60 Series Model Plug Connectors | Housing Material: | PA (Poly-amide) |
|---|---|---|---|
| Amperage Rating: | Rated Current: 25A / Peak Current: 40A | Insulation Rating: | 500V DC |
| Product Categories: | 2-pin, 3-pin, Hybrid | Operating Temperature: | -20°C ~ 120°C |
| Available Length: | 100mm, 150mm, 200mm, 300mm (Custom Available) | Insulation Resistance: | ≥2000 MΩ |
| Contact Resistance: | ≤1.2 MΩ | Plug-in/out Lifespan: | 100 Times |
| Application: | Lithium-ion Batteries, Controllers, Chargers, Motors |

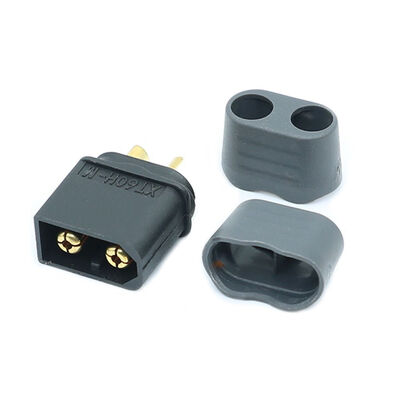

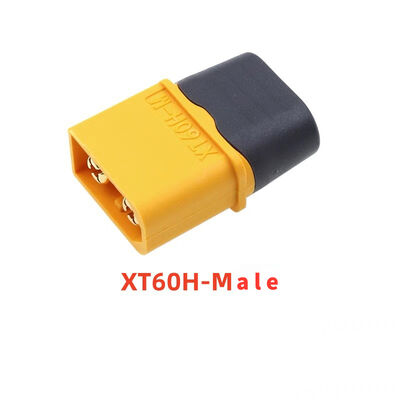

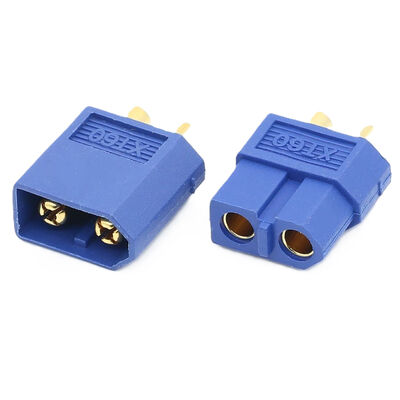

10AWG Drone Connector XT60 Series Model Plug With 35A Rated And 2-3 PIN Configuration
The XT60 Series Model Plug Connectors are high-reliability, gold-plated power connectors engineered for safe, high-current DC connections in lithium battery systems and portable power devices. Available in 2PIN, 3PIN, and mixed configurations with multiple color options (yellow, black, red, blue), the series features UL94 V-0 flame-retardant PA housing, low-resistance copper alloy contacts, and robust 100-cycle mating durability. Rated up to 40A (35A MAX typical) and 600V DC, the XT60 series is the industry-standard connector for RC models, drones, e-bikes, controllers, chargers, and motors.
Keywords:
#XT60 connector
#XT60 plug
#35A connector
#XT60E connector
#XT60 35A gold plated 2PIN connector for lithium batteries
#XT60E 600V DC 35A panel mount power connector
#XT60 series 100 cycle mating RC battery plug yellow black
#UL94 V-0 XT60 3PIN connector for drone motor controller
#XT60 40A low resistance connector for chargers and electric scooters
#RC connector
#Lithium battery connector
#Drone connector
#Model aircraft connector
#E-bike connector
#Power connector
#ESC connector
XT60 Series Model Plug Connectors
| Category | Parameter | Specification | Remarks |
| Electrical | Rated Current | 25–40A (35A MAX @ 10AWG, <85°C) | - |
| Electrical | Rated Voltage / Withstand Voltage | 500V–600V DC | - |
| Electrical | Contact Resistance | ≤0.8–1.0mΩ | Gold-plated contacts |
| Electrical | Insulation Resistance | ≥2000MΩ | - |
| Environmental | Operating Temperature | -20°C ~ +120°C | - |
| Environmental | Protection Degree | IP40 | - |
| Environmental | Salt Spray Resistance | 48 hours | - |
| Mechanical | Mating Cycles | 100 times | Push-fit design |
| Material | Contact Material | Copper alloy, gold-plated | High conductivity & corrosion resistance |
| Material | Housing Material | Flame-retardant PA (Polyamide) | Multiple colors available |
| General | Flammability Rating | UL94 V-0 | - |
Highlighting Benefits
How to Install such XT60 Series Model Connector?
180° wire soldering (welding) type. The connector is injection-molded and pre-assembled for direct soldering to wires (recommended 10AWG for 35A). Suitable for panel or surface mounting. The male and female halves mate with a secure push-fit connection. Color coding and polarity keys prevent reverse connection. No special tools required beyond standard soldering equipment and heat shrink tubing.
Scenario Applications
