AS150U Anti-Spark Aviation Plug High-Current Connector With Signal Pins No. 8 Silicone Cable

AS150U Anti-Spark Aviation Plug High-Current Connector With Signal Pins No. 8 Silicone Cable
AS150U Anti-Spark Aviation Plug High-Current Connector With Signal Pins No. 8 Silicone Cable AS150U Anti-Spark Aviation Plug High-Current Connector With Signal Pins No. 8 Silicone Cable AS150U Anti-Spark Aviation Plug High-Current Connector With Signal Pins No. 8 Silicone Cable AS150U Anti-Spark Aviation Plug High-Current Connector With Signal Pins No. 8 Silicone Cable AS150U Anti-Spark Aviation Plug High-Current Connector With Signal Pins No. 8 Silicone Cable

Large Image :  AS150U Anti-Spark Aviation Plug High-Current Connector With Signal Pins No. 8 Silicone Cable

Product Details:
Place of Origin: CHINA
Brand Name: RITIAN
Certification: CE
Model Number: AS150UPB-M
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Neutral Carton
Delivery Time: 5-8 days for the samples, 15-25 days for bulk
Payment Terms: T/T
Supply Ability: 30000 PCS / Month
Contact Now
Detailed Product Description
Housing Color: Yellow Or Others Plating: Brass Gold-plated
Cable Spec.: 8AWG/24AWG Cable Length: 35CM Or 55CM Options Available
Plastic Material: PA66 FR Level: UL94 V0
Application Scenarios: Agricultural Drones



AS150U Anti-Spark Aviation Plug High-Current Connector With Signal Pins No. 8 Silicone Cable



Product Definition



The AS150U Anti-Spark Battery Connector is a high-current power connector engineered for safe and reliable connections in battery-powered systems. Its built-in anti-spark technology prevents electrical arcing and sparks during connection and disconnection under load, protecting electronics and extending service life.

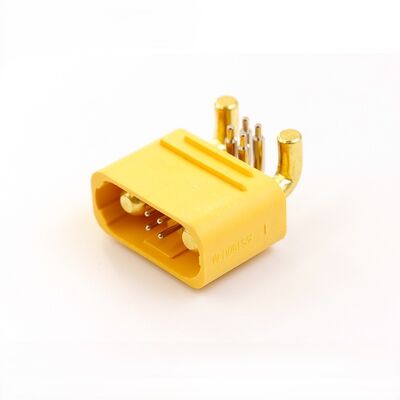

AS150U Anti-Spark Aviation Plug High-Current Connector With Signal Pins No. 8 Silicone Cable 0


Keywords/tags



#AS150U connector

#Anti-spark battery connector

#AS150UPB-M

#70A power connector

#Gold plated connector

#Drone battery connector

#UAV power connector

#High current battery plug

#RC battery connector

#Electric motorcycle connector

#Anti-spark power plug

#8AWG connector


Key Features & Benefits



  1. Anti-spark technology – Safely connects/disconnects under load without arcing or damage
  2. High current capacity – 70A continuous / 140A peak with minimal heat buildup
  3. Superior conductivity – Gold-plated brass contacts ensure ultra-low 0.40mΩ resistance and corrosion resistance
  4. Robust & safe – UL94 V0 flame-retardant PA66 housing and 1000+ mating cycles
  5. Wide temperature range – Reliable performance from -20°C to 120°C
  6. Easy installation – Supports 8AWG cables with simple welding and 3-5kg insertion force
  7. Professional grade – Ideal for high-reliability power systems in drones, e-mobility, and industrial applications


AS150UPB-M Parameters



Parameter Specification
Product Model AS150UPB-M
Color Yellow
Metal Material Brass Gold Plated
Plastic Material PA66
Flame Retardant Level UL94 V0
Recommended Use Battery
Contact Resistance 0.40mΩ
Rated Voltage < DC50V
Rated Current 70A
Instantaneous Current 140A
Mating Cycles 1000 times
Cable Specification 8AWG / 24AWG
Insertion Force 3-5kg
Temperature Rise 70A < 70°C (1 hour)
Operating Temperature -20°C to 120°C
Certification /
Weld Metal Main copper 3.3 mm, signal pin 2.5 mm

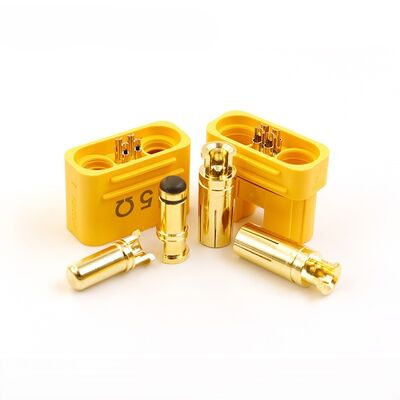

AS150U Anti-Spark Aviation Plug High-Current Connector With Signal Pins No. 8 Silicone Cable 1

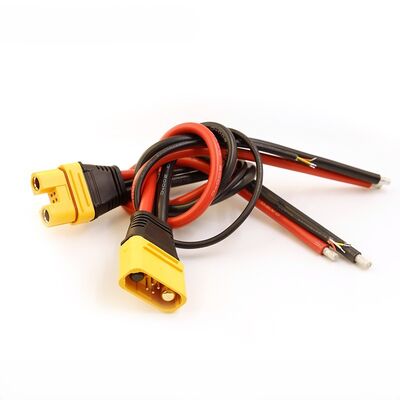

AS150U Anti-Spark Aviation Plug High-Current Connector With Signal Pins No. 8 Silicone Cable 2

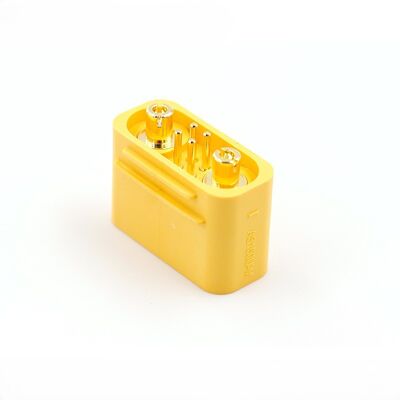

AS150U Anti-Spark Aviation Plug High-Current Connector With Signal Pins No. 8 Silicone Cable 3



Scenario Applications


  • High-power drone / UAV battery systems (main power link)
  • Electric motorcycles and e-scooters (battery pack connections)
  • RC hobby vehicles, cars, and boats
  • Portable power stations and solar energy storage
  • Industrial battery packs and backup power systems
  • Any high-current DC application requiring safe hot-plugging

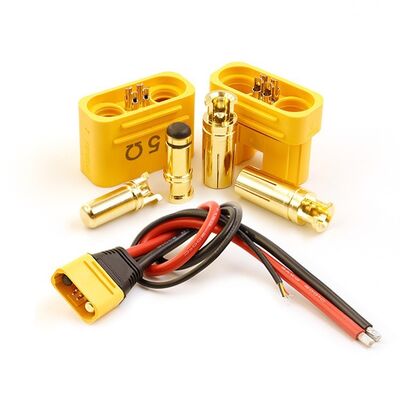

AS150U Anti-Spark Aviation Plug High-Current Connector With Signal Pins No. 8 Silicone Cable 4



AS150U Anti-Spark Aviation Plug High-Current Connector With Signal Pins No. 8 Silicone Cable 5


Tags


#AS150Connector #AntiSparkPlug #SparkProofConnector #UAVPowerCable #DroneBatteryConnector #HighCurrentPlug #AntiArcingConnector #IndustrialUAV #PlantProtectionDrone #AS150U #HighVoltageConnector #GoldPlatedBullet #150AConnector #RCModelPower #LithiumBatteryPlug #CustomPowerCable
