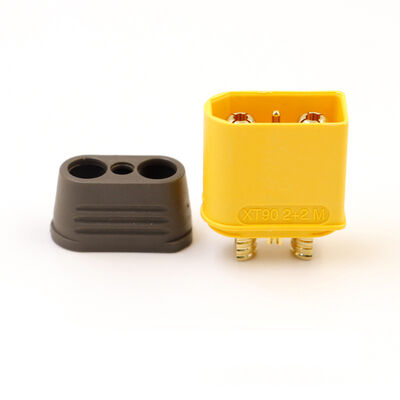

2+2 Hybrid 60A Higher Current XT90 Series Connector For Heavy-Lift Drones And Power Chargers

2+2 Hybrid 60A Higher Current XT90 Series Connector For Heavy-Lift Drones And Power Chargers

The XT90 Series Model Plug Connectors are heavy-duty, high-current DC power connectors engineered for demanding lithium battery and high-power applications. Available in 2PIN and mixed (2+2 hybrid) configurations with bright yellow and black color options, the series features gold-plated copper alloy contacts, robust PA housing, and secure push-fit mating. Rated for 40–60A continuous current and 500V DC, with 100-cycle durability and low contact resistance, the XT90 series is the industry-preferred upgrade from XT60 for large-scale RC models, drones, e-bikes, motors, controllers, and chargers requiring higher power handling.

Keywords:

#XT90 connector

#XT90 plug, 60A connector

#XT90E connector

#XT90 60A 2PIN gold plated connector for lithium batteries

#XT90E panel mount 500V DC 40-60A high current plug

#XT90 2+2 hybrid male female connector yellow black

#XT90 series 100 cycle mating 60A RC battery connector

#XT90 heavy duty power plug for large drones motors and chargers

Key Selling Points

1. High current capacity of 40–60A for heavy-duty power delivery
2. Ultra-low contact resistance (≤1.0mΩ) and gold-plated contacts for maximum conductivity and corrosion resistance
3. 500V DC withstand voltage with insulation resistance ≥2000MΩ for safe high-power operation
4. 100 mating cycles with positive locking mechanism for reliable repeated use
5. Color-coded yellow/black housing for easy polarity identification
6. Wide operating temperature range (-20°C to 120°C) suitable for outdoor and high-load environments
7. Panel-mount and wire-solder versions (including XT90E and XT90ONE) for flexible installation
8. Compact, rugged design – the global standard for high-current RC, drone, and lithium battery connections

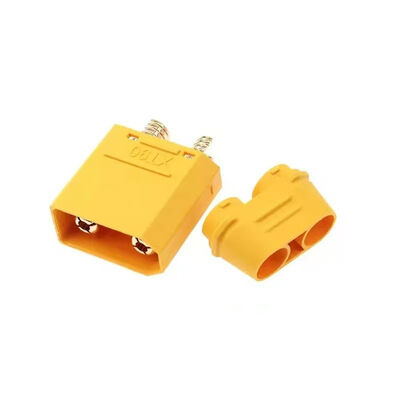

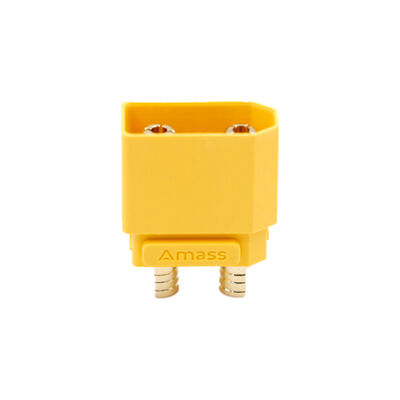

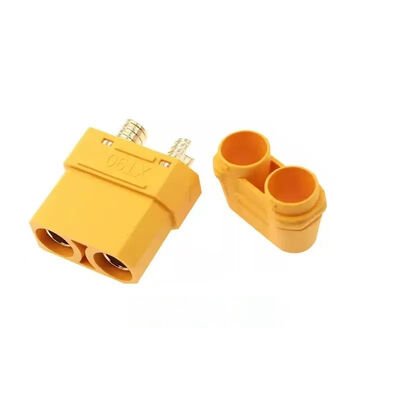

XT90 Series Model Plug Connectors

How to Install such XT90 Series Model Connector?

Wire soldering (180° welding) type with optional panel mounting.

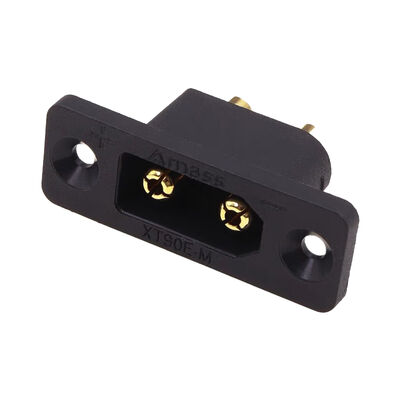

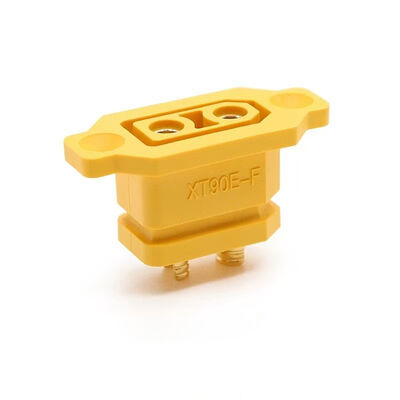

The male and female halves are designed for direct soldering to power cables (recommended 8–10AWG wire for 40–60A). Panel-mount versions (XT90E-M / XT90ONE-M) feature two mounting holes with threaded inserts for secure screw fixation to enclosures or bulkheads. The push-fit mating system provides a secure, polarized connection with color coding to prevent reverse polarity. No special tools required beyond standard soldering equipment, heat shrink, and M3/M4 screws for panel mounting.

Scenario Applications

• High-power lithium battery packs for large RC cars, planes, helicopters, and FPV drones
• Electronic Speed Controllers (ESC) and motor connections in high-current systems
• Battery chargers and high-power balance chargers
• Electric bicycles, scooters, skateboards, and electric vehicles
• Robots, industrial automation, and power tools
• Solar power systems and portable high-capacity energy stations
• Model aircraft, heavy-lift drones, and hobby-grade high-power electronics
• Any medium-to-high power DC connection requiring robust 40–60A performance and reliable repeated mating
