Product Details:
Payment & Shipping Terms:
|
| Material: | PVC Or Similar Jacket, With Gold-plated Or Tin-plated Contacts | Connector Type: | AISG Female To SMH200 5P |
|---|---|---|---|
| Pin Count: | 5 Pins | Cable Length: | Typically Customization(like 1m, 2m, 5m Or Others) |
| Wire Gauge: | 22-28 AWG For Signal/power | Waterproof/Durability: | IP67-rated For Industrial Environments |
| Compatibility: | Designed For Industrial Cameras Trigger IO, Power, And Signal Lines |

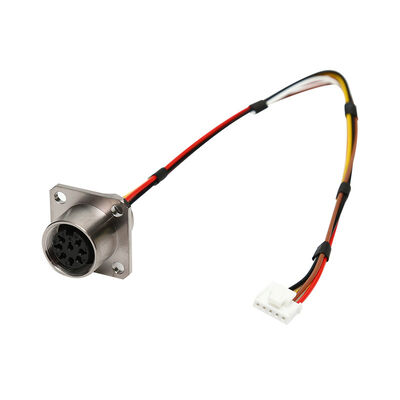

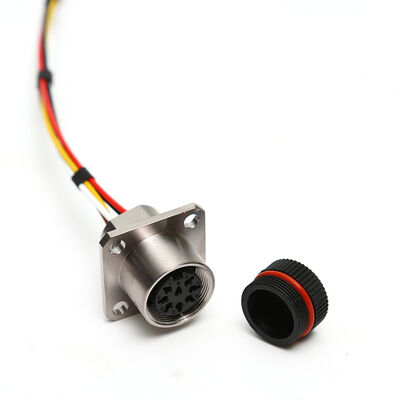

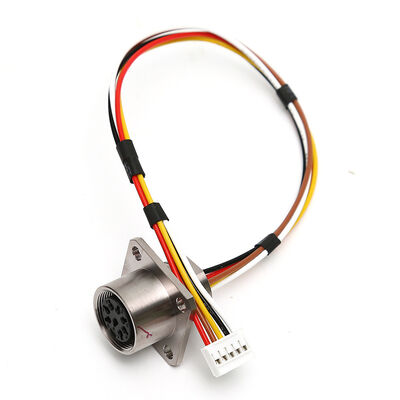

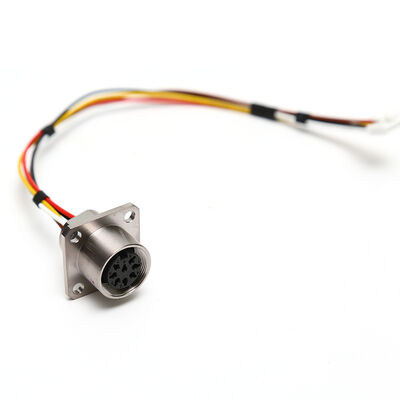

AISG-F-SMH200-5P-Cable Assembilies 210mm Industrial Camera Sensor Trigger Connector
Product Description
This is a specialized signal cable assembly designed for industrial machine vision systems. It features an AISG-F (female) connector on one end and a SMH200 series 5-pin (5P) wire-to-board connector on the other. It serves primarily as a trigger, power, or I/O signal cable for connecting industrial cameras (such as Basler, AVT, Sony CCD, or GigE cameras) to sensors, controllers, or PLCs for precise image capture triggering and data transmission in automated inspection, robotics, and manufacturing lines.
High-lighting Benefits
Technical Parameters
| Parameter | Details |
| Product Model | AISG-F-SMH200-5P-Cable |
| Connector A | AISG Female (locking type) |
| Connector B | SMH200 5P (2.0mm pitch, YEONHO compatible) |
| Pin Configuration | 5 pins (power, trigger, IO signals) |
| Cable Type | Multi-core signal cable |
| Current Rating | Approx. 3A per pin (depending on wire) |
| Voltage Rating | Low voltage (typically 5V-24V DC for signals) |
| Pitch (SMH200) | 2.0mm |
| Operating Temperature | -40°C to +85°C (typical industrial) |
| Applications | Industrial cameras, sensors, automation |
| MOQ / Customization | Contact supplier (Alibaba 1688) for bulk/custom lengths |
Application Scenarios
FAQ:
Q: What is the main purpose of this cable?
A: It connects industrial cameras to trigger sensors or controllers for synchronized image acquisition.
Q: Is the cable length customizable?
A: Yes, custom lengths and pin assignments are available, contact us for details.
Q: Is it compatible with Basler or Sony industrial cameras?
A: Yes, commonly used with HR series style or similar camera interfaces for power/trigger signals.
Q: What is the difference between AISG and SMH200 connectors?
A: AISG is a robust circular connector for reliable field connections; SMH200 is a compact 2.0mm pitch board connector.
Q: Does it support waterproof applications?
A: Many variants are designed with IP-rated protection for harsh industrial environments—confirm with the specific listing.
Q: What is the minimum order quantity (MOQ)?
A: Typically 100pcs or customized from 1k pcs for trial orders.
