HR10A 12-Pin Circular Connector Industrial Camera Power Trigger Cable Assembly for Machine Vision

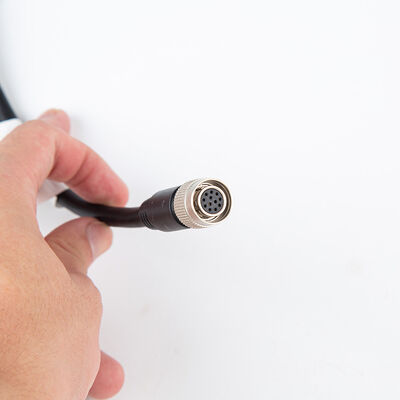

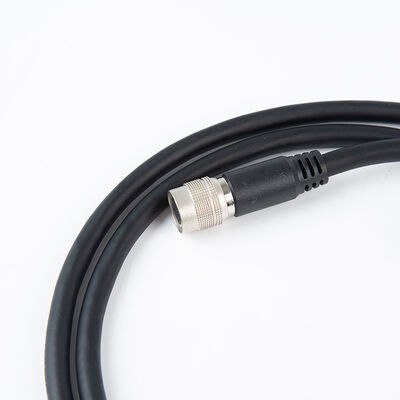

HR10A-10R-12P 12-Pin Industrial Camera Cable Assembly

Our HR10A-10R-12P 12-pin cable assembly is a professional industrial-grade wiring harness engineered and manufactured by Dongguan Ritian Communication Technology Co., Ltd. Based on the standard Hirose HR10A circular connector interface, this high-flex cable is specially customized for the stable power supply and I/O trigger signal transmission of industrial cameras and machine vision systems.

Key Product Features

1. Standard HR10A Series 12-Pin Connector: This camera trigger cable assembly adopts the Hirose standard HR10A-10R-12P circular connector with a 12-core fully wired design. It ensures reliable power supply, precise I/O hardware trigger signals, and stable data transmission, fully matching the wiring pinouts of mainstream machine vision camera brands like Basler, Hikrobot, Baumer, and Sony.
2. IP67 High Industrial Protection Grade: Features a fully sealed, waterproof, and dustproof structure that resists oil, industrial solvents, and heavy wear. It operates continuously in harsh factory automation workshops and humid/dusty environments, completely blocking electromagnetic interference (EMI) and external signal degradation.
3. Ultra-Wide Operating Temperature & High-Flex: The complete wire harness supports extreme industrial environment temperature resistance from -40℃ up to +80℃. The outer jacket is constructed from high-flex robotic-grade material, offering outstanding low-temperature flexibility, high tear resistance, and millions of bending cycle capabilities.
4. Premium C5911 Copper Alloy & Flame-Retardant PBT: The contact pins are engineered using high-conductivity C5911 copper alloy, delivering low contact impedance, oxidation resistance, and long service life. The internal plug insulator utilizes high-strength black PBT resin, providing flame retardancy and excellent mechanical insertion durability.

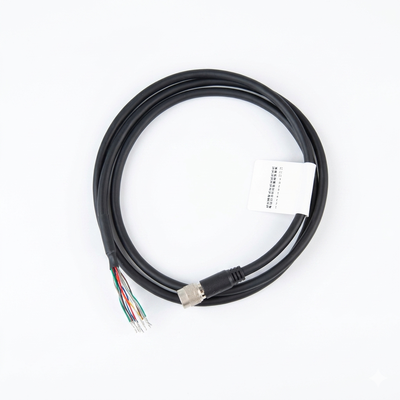

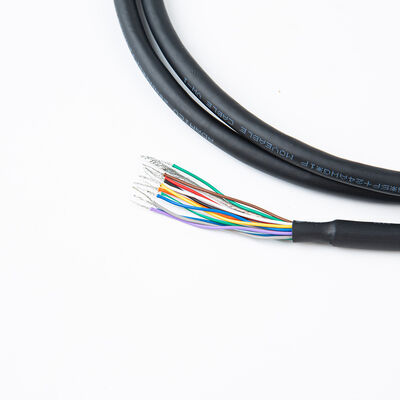

5. 100% Customizable Wiring Definition: While the standard 1.5m length cable is fully stocked, we offer complete OEM/ODM options for custom cable lengths, specific pinouts/wiring schematics, and secondary interface modification (e.g., D-Sub, flying leads/pigtails, RJ45) to fit your precise automated setup.

Technical Parameters & Specifications


Machine Vision Application Scenarios

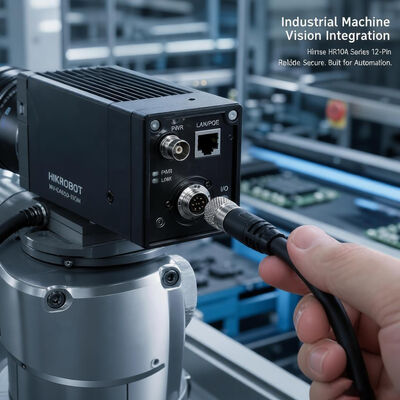

Our 12-pin Hirose-compatible connectors are widely integrated into automatic optical inspection (AOI) setups, manufacturing robotic arms, pharmaceutical packaging systems, semiconductor inspection, and smart logistics sorting lines for high-speed image trigger synchronization.

Frequently Asked Questions (FAQ)

Q: What are the primary functions of this 12-pin cable assembly?
A: It is purpose-built to deliver steady DC power supply and carry synchronized hardware trigger input/output signals between industrial cameras and PLCs, external sensors, or strobes.
Q: Can we request a custom wiring configuration or pin allocation?

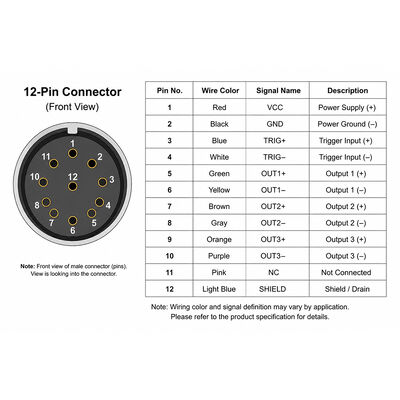

A: Yes! We fully specialize in custom-tailoring the wire color codes and pin configurations. Send us your technical schematic or camera model, and our engineering team will build it to spec.
Q: Is this 12-pin cable 100% compatible with Basler, Hikrobot, and Sony cameras?
A: Yes, it is 100% compatible with all major machine vision cameras featuring standard Hirose 12-pin male receptacles (such as Basler ace, Sony XC, Hikrobot, Cognex, and Baumer lines).
