| Pin Counts: | 4 / 6 / 7 / 10 / 12 Pins | Locking Mechanism: | Push-pull Self-locking (quick Plug & Unplug, Secure Retention) |
|---|---|---|---|
| Mounting Options: | Panel Mount (front/rear), Screw Nut Fixing, Floating Alignment | Termination: | Soldering / PCB Welding |
| Housing Material: | Brass With Nickel Plating | Contact Material: | Brass Or Phosphor Bronze With Gold (Au) Plating |
| Insulator: | PA66 Engineering Plastic | Cable Comp-ability: | Supports Custom Cable Assemblies With High-flex, Abrasion-resistant Jacket |

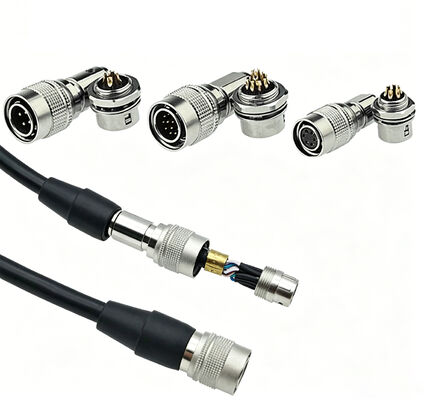

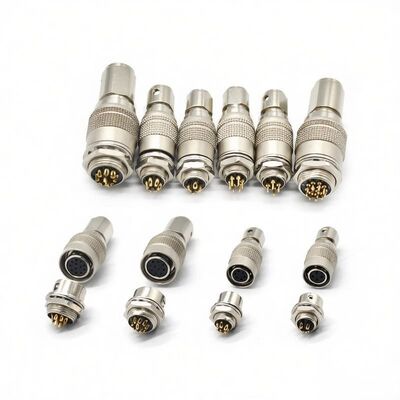

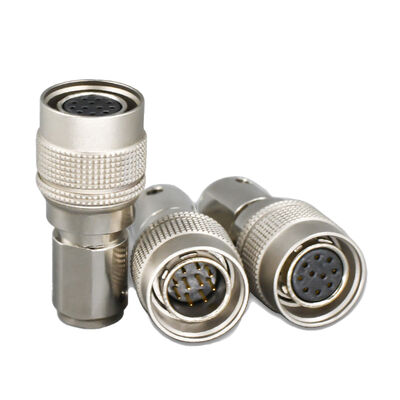

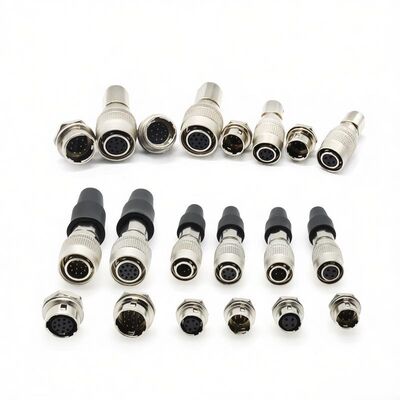

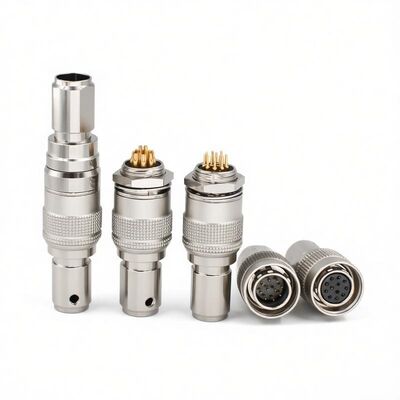

High-quality Compatible HRS 4/6/7/10/12-Pin Aviation Connector For Industrial Camera Power/Trigger Cable
Product Description
This is a high-precision, push-pull self-locking circular connector series designed specifically for industrial cameras and machine vision systems. It features a compact metal housing with reliable push-pull quick-release locking mechanism, making it easy to connect and disconnect while ensuring secure mating under vibration. Available in 4-pin, 6-pin, 7-pin, 10-pin, and 12-pin configurations, it is widely used for power supply, trigger signals, GPIO, and data transmission between industrial cameras (Basler, Cognex, Sony, AVT, JAI, etc.) and controllers or cables.
Key Features
Technical Parameters
| Project Content | Specification |
| Pin Count | 4 / 6 / 7 / 10 / 12 pins |
| Operating Temperature Range | -25℃ ~ +85℃ |
| Rated Voltage | 30V DC |
| Termination Style / Method | PCB Soldering / Wire Soldering |
| Rated Current | 2A (3A Max) |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | 3 mΩ |
| Ingress Protection Rating | IP54 |
| Mating Durability | >1000 mating cycles |
| Salt Spray Resistance | 48 hours |
| Material | Housing: PA66; Contacts: Brass with Nickel Plating |
Application Scenarios
FAQ:
Q: What is the main purpose of this cable?
A: It connects industrial cameras to trigger sensors or controllers for synchronized image acquisition.
Q: Is the cable length customizable?
A: Yes, custom lengths and pin assignments are available, contact us for details.
Q: Is it compatible with Basler or Sony industrial cameras?
A: Yes, commonly used with HR series style or similar camera interfaces for power/trigger signals.
Q: What is the difference between AISG and SMH200 connectors?
A: AISG is a robust circular connector for reliable field connections; SMH200 is a compact 2.0mm pitch board connector.
Q: Does it support waterproof applications?
A: Many variants are designed with IP-rated protection for harsh industrial environments—confirm with the specific listing.
Q: What is the minimum order quantity (MOQ)?
A: Typically 100pcs or customized from 1k pcs for trial orders.
